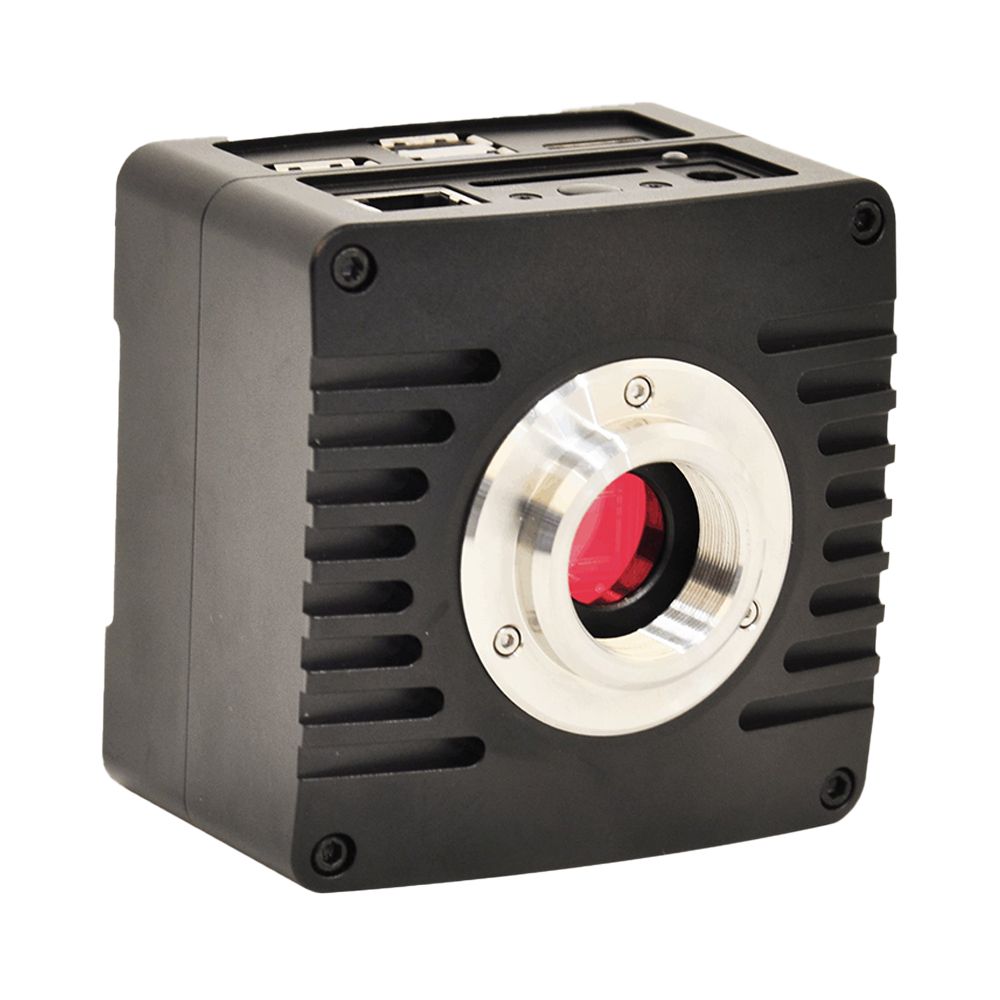

The EHD-CAM4K-X5 series supports simultaneous output via HDMI, USB, and network interfaces and was specifically designed for interactive microscopic teaching systems. The system enables multi-terminal sharing and collaborative operation for effective teaching.

Outstanding image quality:
The Sony Starvis 2 sensor delivers exceptional light sensitivity and low noise, even in challenging lighting conditions.

Exceptional performance:
The combination of 4K at 75 fps and extremely low latency (40 ms) is ideal for live work under the microscope or in quality control, as there is no noticeable delay.

Maximum connectivity:
You can output the signal simultaneously via HDMI, network (IP), and USB, enabling parallel monitoring, streaming, and PC analysis.

Integrated Intelligence:
The camera does not require a PC for complex tasks; features such as focus stacking (depth-of-field synthesis), image comparisons, and stitching are directly integrated into the user interface.

Data Security:
Support for USB 3.0 SSDs and protection against data loss in the event of a power failure make it suitable for critical documentation processes.



The EHD-CAMLITE1080P series camera is designed for capturing high-quality digital images from stereo and biological microscopes. Here’s a detailed breakdown of its key features:

Sony Starvis CMOS Sensor: The camera is equipped with a back-illuminated Sony 1/2.8″ IMX307 Starvis CMOS sensor, which enhances its sensitivity to light, making it ideal for low-light environments, and provides high-resolution images.

HDMI Video Output: The camera supports Full HD video output via HDMI, allowing you to connect it directly to an HDMI-enabled monitor for real-time viewing of the images or videos.

USB Flash Drive Storage: It includes options for storing captured images and videos on external storage devices such as USB flash drives, making it easy to save and transfer data.

Embedded XCamView Software: The camera comes with integrated XCamView software, which provides full control over the camera settings, making it easy to manage image captures and video recordings.

Strong ISP and Processing Functions: The camera has a built-in Image Signal Processor (ISP) and other advanced processing capabilities, ensuring high-quality image enhancement, noise reduction, and other image adjustments.

Standalone Operation: The camera operates independently with the included XCamView software. All that is needed, apart from the microscope, is an HDMI monitor and a USB mouse to control the software, making the setup simple and user-friendly.

This camera is an excellent choice for those needing a microscope camera that is easy to set up and provides high-quality image capture and storage solutions.

Designed for broadcast and microscopy applications, the EHD-HDMI is the ideal, high sensitive/high resolution color camera solution. It’s newest 1/3″ CMOS progressive-scan sensor in combination with the integrated Digital Signal Prozessor produces a sharp and clear image, even under different light conditions. All camera parameters are switchable via On-Screen-Display.

Designed for low-light, microscopy and industrial applications, the EHD12V6HC-EX is the ideal, high sensitive monochrome camera solution. It’s newest 1/2″ EXviewHAD CCD sensor in combination with the integrated Digital Signal Prozessor produces a sharp and clear image, even under different light conditions. All camera parameters are switchable via On-Screen-Display.
