NIR Enhanced
Making the invisible visible: precision up to 1300 nm with our NIR cameras
In modern industrial image processing, the wavelength spectrum often determines process reliability. While standard sensors reach their limits at 1000 nm, our NIR-optimized camera systems open up the crucial range up to 1300 nm.
Where the human eye and conventional cameras only see opaque surfaces, our systems enable deep insight into materials and light sources.
EHD SC900NIR-ICM NIR global shutter camera with Sony IMX900 sensor
The SC900NIR-ICM is a next-generation, ultra-compact industrial camera specifically designed for demanding machine vision applications, high-speed inspections, and scientific measurement procedures. At the heart of the camera is the state-of-the-art Sony Pregius S IMX900 CMOS sensor, which combines brilliant image quality and maximum precision with a resolution of 3.2 megapixels (2064 x 1552 pixels). Thanks to true global shutter technology, the SC900NIR-ICM captures extremely fast motion sequences with absolutely no distortion—ideal for the precise analysis of pulsed laser applications or for quality control in high-speed production processes. A particular highlight is the optimized near-infrared (NIR) sensitivity, which extends well beyond the 1000 nm range. In combination with invisible IR illumination, the camera handles even the most challenging lighting conditions and reveals details that remain hidden to the human eye or standard sensors.
Key Features:
* Sensor: High-end Sony Pregius S IMX900 CMOS sensor (1/3.1″ type).
* Resolution: 3.2 megapixels for detailed and sharp measurement results.
* Shutter type: Global shutter—distortion-free images of fast-moving objects without rolling shutter effects.
* NIR optimization: Superior quantum efficiency in the near-infrared spectrum (> 1000 nm).
* Flexible Interface: Optionally available with a future-proof USB 3.0 or long-range GigE interface for seamless system integration.
Typical Applications:
* Laser profiling and the detection of extremely short-pulsed laser signals.
* Industrial quality control and automated sorting systems (machine vision). * High-speed barcode and marking reading.
* Traffic monitoring (ITS) and autonomous guided vehicles (AGVs/AMRs).
* The SC900NIR-ICM is the perfect choice when maximum speed must be combined with the highest IR light output.
EHD SC585-NIR-CTR Cooled Near-Infrared (NIR) camera detection up to 1300nm.
The SC585-NIR-CTR is a temperature stabilized 8.3MP monochrome rolling shutter cooled camera (IMX585, 1/1.2″), with 2.9 µm pixels and high-resolution imaging. USB3.0 transmission, 4K 45 fps and 1080P 70 fps. Built-in TEC cooling (typical ΔT≈5–10 °C) with closed-loop temperature control and anti-fogging structure, maximum exposure approximately 300 s, suitable for low-light microscopy, online inspection, and large field-of-view recording.
Key Features
Sensor: Sony IMX585 (monochrome, rolling shutter) 8.3MP
Pixel/format: 2.9 µm; 1/1.2″ (12.78 mm diagonal)
Frame rate: 45 fps@3840×2160; 70 fps@1920×1080
Interface: USB3.0; 8/12-bit output
Dynamic range: TBD; Sensitivity: 19120mV
TEC cooling: ΔT≈5–10 °C; closed-loop temperature control, anti-condensation
Maximum exposure: 300s
Gain Control: The camera features switchable gain modes:
HCG (High Conversion Gain) for better performance in low-light environments, providing enhanced image quality.
LCG (Low Conversion Gain) for higher dynamic range in brighter conditions, reducing noise in the image.
Wavelength Sensitivity: The camera is capable of detecting light up to 1200 nm, making it suitable for near-infrared applications, such as surveillance, industrial inspection, or scientific research.
Trigger & GPIOs: It has trigger input/output functions, allowing synchronization with external equipment, and 2 GPIOs (General Purpose Input/Output) for custom control or integration with other devices.
Includes EHDView and cross-platform SDK (Windows/Linux/macOS/Android)
This combination of high resolution, NIR sensitivity, and flexible gain options makes the SC585-NIR-CTR suitable for a variety of demanding imaging tasks.
EHD SCM585-NIR-TR Near-Infrared (NIR) camera detection up to 1300nm.
The SCM585-NIR-TR is a specialized camera designed for applications requiring high-resolution imaging, particularly in the near-infrared (NIR) spectrum. Here’s a summary of its key features:
Sensor: It uses amonochrome backilluminated IMX585M rolling shutter sensor, a 1/1.2″ sensor size with a 3840×2260 pixel resolution. The backilluminated design allows for better sensitivity and low-light performance.
Frame Rate: The camera offers a frame rate of 45 fps at full resolution, which is useful for capturing fast-moving objects or scenes.
Interface: It connects over a USB 3.0 interface, providing a high-speed data transfer for real-time imaging and processing.
Gain Control: The camera features switchable gain modes:
HCG (High Conversion Gain) for better performance in low-light environments, providing enhanced image quality.
LCG (Low Conversion Gain) for higher dynamic range in brighter conditions, reducing noise in the image.
Sensor Temperature: The temperature of the image sensor can be read and displayed.
Wavelength Sensitivity: The camera is capable of detecting light up to 1200 nm, making it suitable for near-infrared applications, such as surveillance, industrial inspection, or scientific research.
Trigger & GPIOs: It has trigger input/output functions, allowing synchronization with external equipment, and 2 GPIOs (General Purpose Input/Output) for custom control or integration with other devices.
This combination of high resolution, NIR sensitivity, and flexible gain options makes the SCM585-NIR-TR suitable for a variety of demanding imaging tasks.
EHD SCM678-NIR-TR Camera with IMX678, 1/1.8", 8.3MP Near-Infrared (NIR) sensor.
The SCM678-NIR-TR is a specialized high-performance camera featuring the monochrome IMX678 Starvis 2 sensor. Here are the key details of the camera:
Sensor: IMX678 Starvis 2, a 1/1.8″ Rolling Shutter sensor, which enables high sensitivity and clear imaging in low-light conditions.
Resolution: 3840×2160 pixels (4K), providing high-definition images at a detailed level.
Frame Rate: 45 fps at full resolution, allowing smooth video capture for dynamic scenes.
Interface: USB 3.0, offering high-speed data transfer for real-time applications.
Sensitivity: 11288 mV, a very high sensitivity, which makes the camera capable of capturing clear images even in low light.
Wavelength Sensitivity: The camera is sensitive up to 1200nm, enabling it to capture near-infrared (NIR) light, which is crucial for NIR laser detection and other specialized imaging applications.
Gain Control: The camera features switchable gain modes:
HCG (High Conversion Gain) for better performance in low-light environments, providing enhanced image quality.
LCG (Low Conversion Gain) for higher dynamic range in brighter conditions, reducing noise in the image.
Trigger Input/Output: The camera has trigger input and output functions, allowing for synchronization with other devices in automated or time-sensitive setups.
GPIOs: The two General Purpose Input/Output (GPIO) pins provide additional control options for triggering or interacting with external devices, such as sensors or other peripherals.
This camera is designed for applications that require high sensitivity, fast data transfer, and precise timing, such as NIR laser detection, scientific research, or industrial inspection systems.

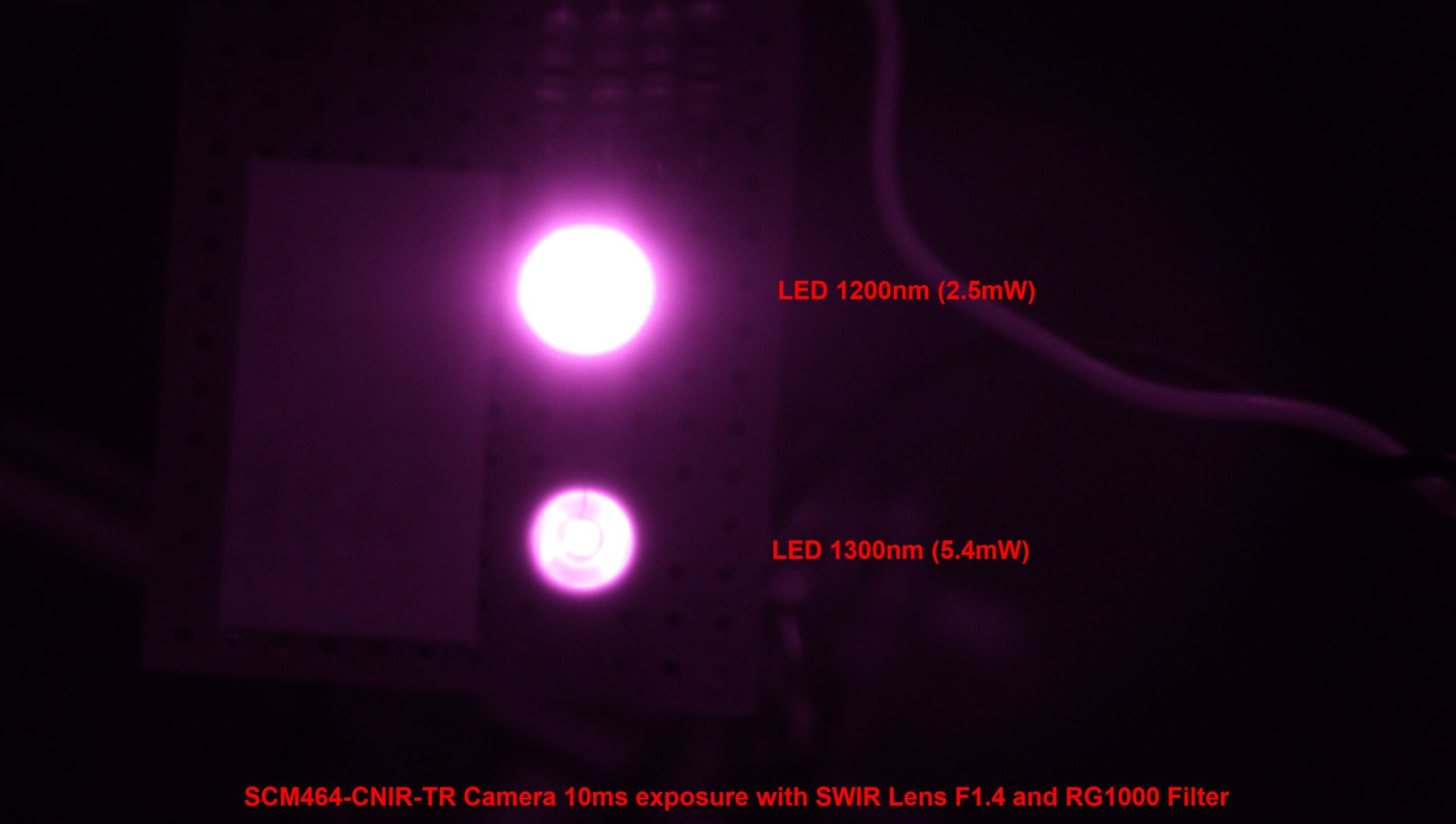

EHD SCM464-CNIR-TR NIR color camera sensitive up to 1300nm.
The SCM464-CNIR-TR is a specialized camera that incorporates the IMX464C back-illuminated color sensor, designed for high-performance imaging in a variety of lighting conditions. Here’s a breakdown of its key features:
Sensor: The camera uses the IMX464C 1/1.8″ back-illuminated rolling shutter color sensor, which offers a resolution of 2688×1520 pixels. This resolution allows for detailed imagery across a wide area.
Frame Rate: The sensor supports 90 frames per second (fps) at full resolution, ensuring smooth and high-speed capture in dynamic environments.
Interface: The camera connects via USB3.0, enabling high-speed data transfer for real-time streaming of high-resolution images.
Gain Modes: It offers switchable gain modes: High-Gain for low-light sensitivity and Low-Gain for brighter environments. This flexibility helps optimize image quality across varying lighting conditions.
Sensitivity: The camera is designed to be sensitive to light in the near-infrared range up to 1300nm, allowing it to capture both visible and some infrared light, which is useful for specialized applications such as night vision, material inspection, or biological imaging.
Temperature Sensor: Readout of the image sensor temperature.
Monochrome Mode: It features the ability to switch into monochrome mode, providing high-contrast black-and-white imagery for specific applications that require more precise detail without the interference of color.
Trigger Input/Output: It includes trigger input/output (I/O) functions, enabling synchronization with external devices, which is crucial for time-sensitive applications such as industrial inspections or scientific research.
GPIOs: The camera provides 2 General-Purpose Input/Output (GPIO) pins, allowing it to interact with external hardware for controlling peripheral devices or responding to external signals.
This camera is ideal for applications in industries like machine vision, surveillance, biomedical imaging, or scientific research, where high-resolution, high-speed, and high-sensitivity imaging is required.
EHD MaxCam-2020e-TE Cooled Near Infrared (NIR) Camera with GSENSE2020e sensor and USB3.0.
The EHD MaxCam-2020e-TE series industrial USB3.0 camera is a highly specialized and sophisticated imaging tool with several advanced features. Here’s a breakdown of its key attributes:
Sensor:
GSENSE2020e 1.2″ front-illuminated sCMOS monochrome sensor ensures high-quality imaging, often used in industrial and scientific applications due to its exceptional sensitivity and low noise.
Cooling System:
Two-stage Peltier cooling: The sensor is cooled to -40°C below ambient temperature, which dramatically reduces thermal noise to 0.12(e-/s/pix)@-10°C, improving the signal-to-noise ratio. This cooling solution enhances image quality, particularly in low-light or long-exposure scenarios.
Heat Management:
The camera features a smart structure for efficient heat dissipation, along with an electric fan that increases heat radiation speed to maintain optimal performance.
Lens Mounts:
M42 mount and C-Mount adapter are included for lens attachment. There’s also the option for a F-Mount adapter, providing compatibility with various lenses.
Resolution & Image Quality:
With 16-bit A/D conversion, the camera ensures that it captures high-resolution, low-noise images suitable for precise industrial and scientific applications, such as microscopy or machine vision.
Data Transfer:
The USB3.0 interface provides fast data transfer, ensuring smooth operation, especially when capturing high-resolution images or videos.
Software & SDK:
The camera comes with EHDView acquisition software, which is complemented by an SDK compatible with Windows, Linux, and macOS platforms. The camera can also be controlled via DirectShow and TWAIN, which are commonly used standards for device communication on these operating systems. Also support for Matlab, LabView and ImageJ Micro-Manager.
This camera would be well-suited for high-performance imaging tasks in fields like industrial inspection, scientific research, and other applications where both image quality and low noise are critical.
