UV Quarz Lenses

These lenses are available from stock with focal lengths of 6, 9, 12, 16, 25, 35, 50, 60, 78, and 105 mm and are ideal for forensic investigations and other applications in the UV and infrared range.
The AZ-UV series models are high-resolution lenses for sensor sizes up to 1.2". This makes them ideal for our UV cameras with the GSENSE2020BSI and GLUX9701BSI.
We have developed and manufactured these lenses as a cost-effective solution for the growing demand for imaging in the non-visible spectrum. Thanks to the wide transmission range of the quartz elements, this lens family can also transmit in the infrared spectrum.
Optimized for a wavelength of 250 nm.

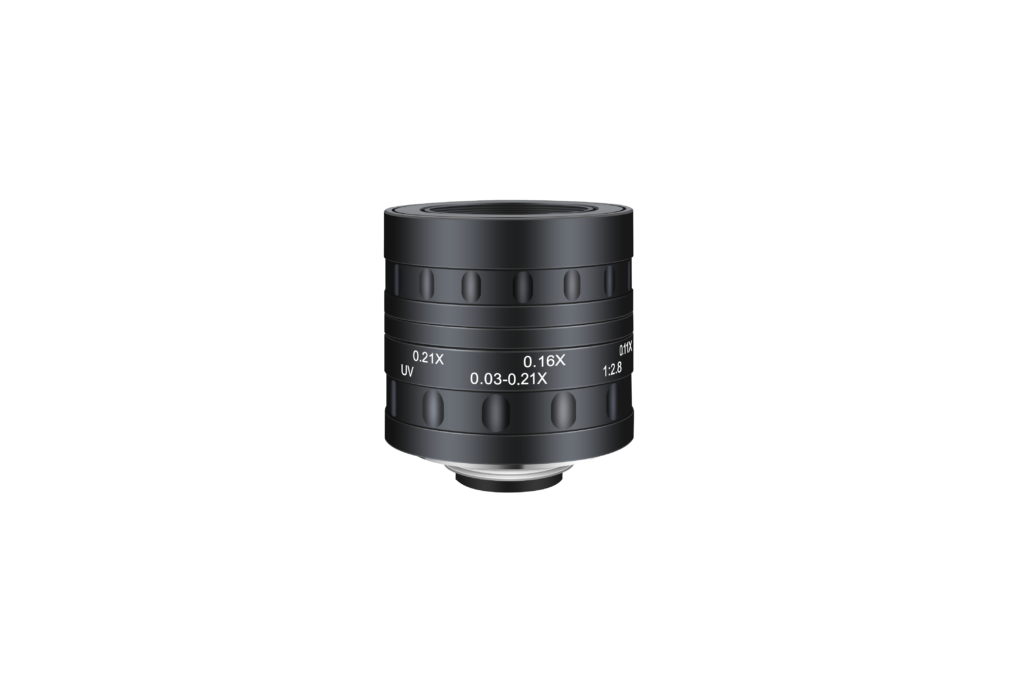

High-Resolution Quarz UV-Lenses with C-Mount
UV Quarz Lenses

HighRes 2MP UV Quarz Lenses Quarz UV lenses for 2/3", 1.2" and 2" sensors with C-Mount and F-Mount.

The quartz glass lenses from the EHD-AZ-UV series are designed specifically for use with the EHD UV cameras equipped with GPIXEL’s GSENSE2020BSI and GLUX9701BSI UV sensors. These lenses have been successfully tested in various fields, including forensics, contamination analysis, and UV radiation detection, particularly when paired with 1.2″ sensors.

Additionally, a high-resolution (HR) version of the lens is available for 2/3” sensors, optimized for use with the SONY IMX487 2/3″ UV sensor, making it a versatile choice for different camera setups.

For larger sensors, like the GSENSE400BSI UV, there are two F-mount lenses available: one with a focal length of 75mm and another with a focal length of 105mm, offering flexibility in high-resolution imaging applications.

Datasheet
Quarz UV lenses
UV Quarz Lenses

EHD UV Quarz Lenses Quarz UV lenses with C-Mount and T-Mount.

Available from stock in 6, 9, 12, 16, 25, 35, 50, 60, 78, 105 and 200mm focal lengths, these lenses are well suited to forensic investigation and other UV and Infrared imaging applications.

We have designed and manufactured these lenses as a reasonably priced solution to the growing need for imaging in the other than visible spectrum. Owing to the broad transmission range of the quartz elements this family of lenses can transmit well into the Infrared spectrum as well.

Datasheet of the lenses:

  • UV0635BCM, f=6mm, C-Mount, 1/2″ Sensor
  • UV0928CM2, f=9mm, C-Mount, 1/2″ Sensor
  • UV1228CM, f=12mm, C-Mount, 2/3″ Sensor
  • UV1628CM, f=16mm, C-Mount, 2/3″ Sensor
  • UV2528B, f=25mm, C-Mount, 1″ Sensor
  • UV3528B, f=35mm, C-Mount, 22mm diam. Sensor
  • UV5035B, f=50mm, C/T-Mount, 18/43mm diam. Sensor
  • UV6035B, f=60mm, C/T-Mount, 18/43mm diam. Sensor
  • UV8040BK2, f=78mm, C/T-Mount, 18/43mm diam. Sensor
  • UV1054B, f=105mm, C/T-Mount, 18/43mm diam. Sensor
  • UV2004B, f=200mm, C/T-Mount, 18/43mm diam. Sensor

C/T-Mount changeable

Datasheet

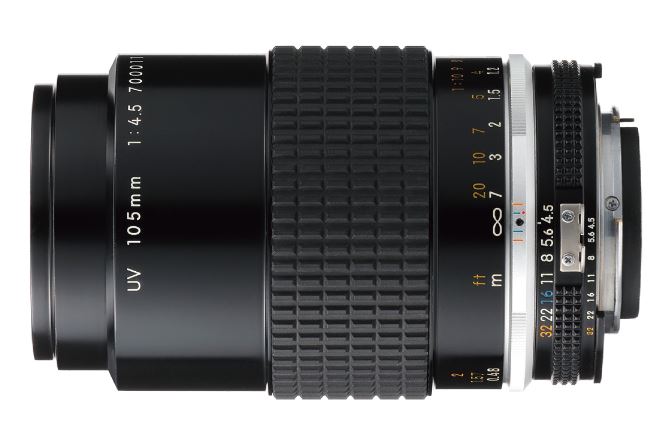

Nikon_PF10545MF-UV lens
UV Quarz Lenses

Nikon PF10545MF-UV Chromatically corrected Nikon F-Mount UV lens from 220 - 900nm.

The Nikon PF10545MF-UV F-Mount Lens is specifically designed for ultraviolet (UV) photography, offering several unique features tailored to capturing images in the UV spectrum. Here’s a breakdown of its key characteristics based on your description:

Key Features of the Nikon PF10545MF-UV F-Mount Lens:

  1. UV Photography Compatibility:
    • This lens is optimized for photographing in the ultraviolet light range, which typically spans wavelengths from around 200 nm to 400 nm. It allows photographers to capture UV images with high accuracy and detail.
  2. No Focus Correction Needed for UV:
    • A significant benefit of this lens is that no focus correction is required when photographing under UV light, as long as the initial focus is set under visible light. This simplifies the process, making it easier to capture sharp images in the UV spectrum without the need for manual focus adjustments in the ultraviolet range.
  3. High Transmittance:
    • The lens has an impressive transmittance rate of about 70% across a broad wavelength range, from 220 nm to 900 nm. This high transmittance ensures that a significant amount of UV light passes through the lens to the camera sensor, resulting in clearer and more detailed UV images.
    • The transmittance rate is important in UV photography because it influences the amount of UV light that reaches the camera’s sensor, which is critical for high-quality UV imaging.
  4. Minimal Distortion:
    • The lens offers minimal distortion in the magnification range from ∞ (infinity) to -0.5x. This means that the lens maintains sharpness and clarity even when photographing subjects at very close distances or at infinity, which is essential for preserving image quality in UV photography.
    • The minimal distortion ensures accurate reproduction of the scene or subject, especially when photographing intricate details under UV light.

Additional Notes:

  • F-Mount: This lens is designed to be used with Nikon’s F-mount cameras, offering compatibility with a wide range of Nikon DSLR and mirrorless cameras when using appropriate adapters.
  • Focus Range: While the lens allows for focus at infinity, it also offers close-up capabilities, making it versatile for different UV photography applications, such as macro or landscape photography.

This lens would be particularly useful for scientific research, forensic photography, or creative UV photography, where precise light transmission and minimal distortion are crucial for capturing the full spectrum of UV light.







Datasheet
